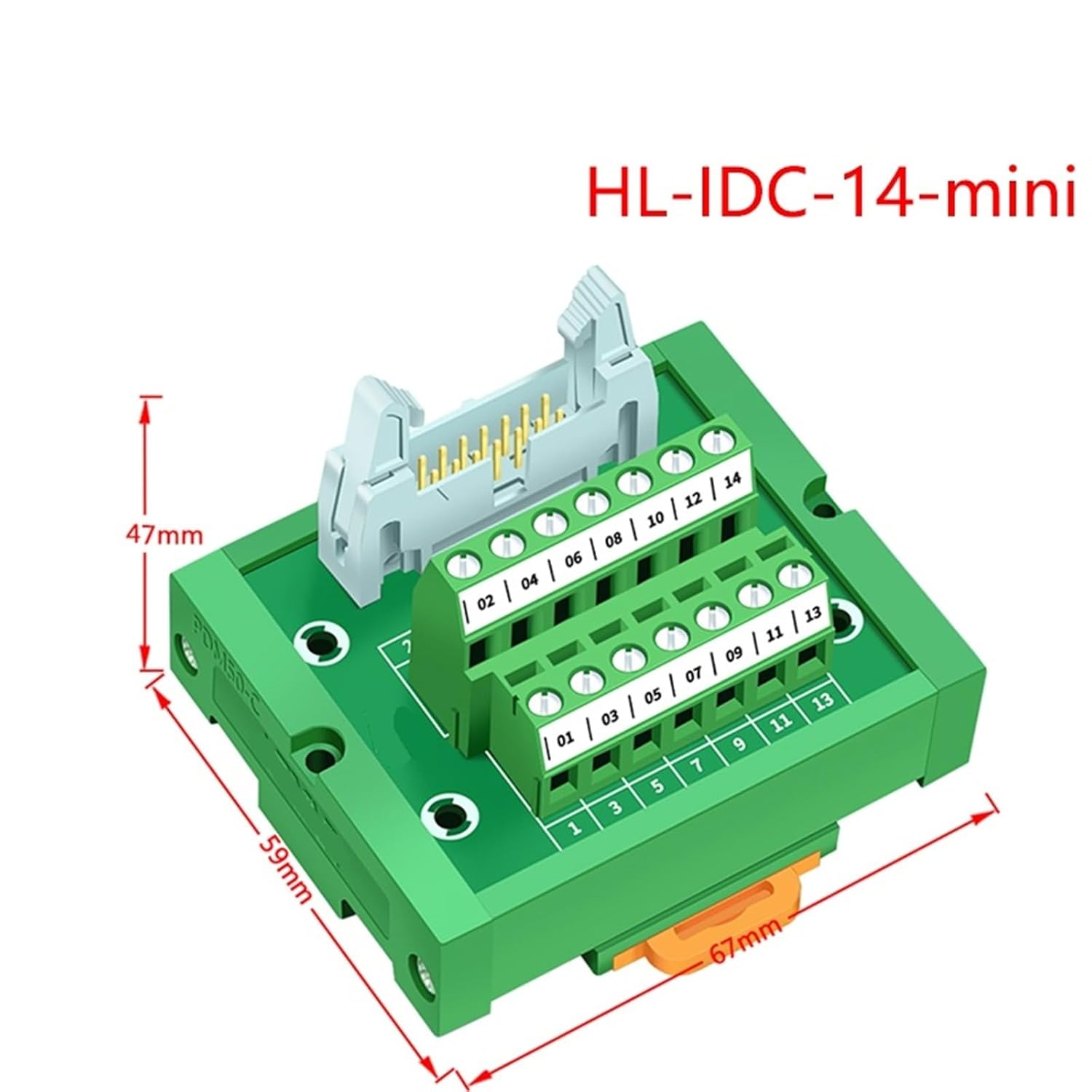

Terminal Block for PLC IDC14 Male 14Pin Turn Terminal Block Breakout Board Idc14 Connector DIN Rail Mounting(HL-IDC14-mini type1)
Product details
| Management number | 221450611 | Release Date | 2026/05/03 | List Price | US$12.83 | Model Number | 221450611 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
IDC-14 DIN Rail Mounted Interface Module.IDC pin pitch 2.54mm/0.1" male header connector.Pitch 5.08mmscrew terminal block.Din rail mountable - for width 35 / 32 / 15mm rails.Din mount case can be taken apart for panel mount use.PCB housing/carrier.FR-4 fiber glass PCB, dual copper layers.Rated voltage: 60V.Rated current: 1A / per pin.Operating Temperature: -20ºC to 50ºCTerminal block specifications:Wire range - 26-16AWG.Strip length - 5mm.Screws - M2,steel,Cr3+ Zn plated.Torque - 0.2Nm (1.7Lb-In.).Pin header and Cage - Brass.==========Low voltage: Below 50Vac or 75VdcModel Number : IDC14Voltage : 48VConnector : IDC14Gender : MaleProdcut Name : FlowerApplication : Lighting, Breakout boardType : IDC14
- 1.This Module is durable and long-lasting
- 2.Suitable for PLC and DIN rail mount.
- 3.Screw/spring terminal block
- 4.This Module is made of material and by delicate workmanship treatment,with long serving life
- 5.High quality PCB carrier.
| Color | HL-IDC14-mini type1 |
|---|---|
| Gauge | 1.0 |
| Model | SHIHUANI |
| Brand Name | SHIHUANI |
| Part Number | SHIHUANI |
| Manufacturer | SHIHUANI |
| Connector Type | Bullet |
| Specification Met | UL |
